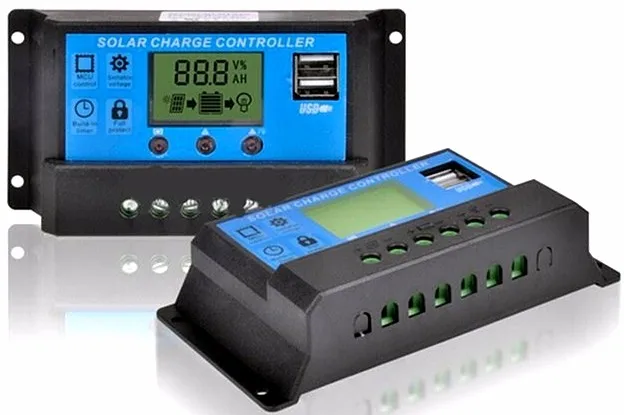

LCD display Double USB PWM 12V 24V 30A 20 amp pwm solar charge controller manual

FOB Reference Price:Get Latest Price
US $7.5-8.6 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DOD
Model Number:
DCK
Application:
Solar System Controller
Rated Voltage:
12v 24v auto
Maximum Current:
10A
Type:
Solar Charge Controller
Control Mode:
PWM
Warranty:
3 years
Functions:
Light + Time Control
Full Protection:
YES
Approval:
CE / ROHS
Suitable Battery:
lead storage batteries; AGM, GEL
ODM:
Available
OEM:
Available
Rated Current:
10A
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Controller Weight : 0.3kg
Controller Size:150*78*35mm
Controller Carton: 100pcs/ carton
Port
Ningbo/shanghai etc
Lead Time :
3~5 days

LCD display Double USB PWM 12V 24V 30A 20 amp pwm solar charge controller manual

20 amp pwm solar charge controller manual



Why choose us?



Why Choose us and our controller  ?

1. Factory Directly :  Over 20 different kinds of controller for choose ,Price is good ,Quality can be controlled.

2. Certificate : Our charge controller got SGS testing certificate ,CE ,ROHS as well

3. OEM and cooperating with an famous brand in Europe. We have pass strict factory inspection Audit by third party institution and client auditor. During the cooperation with famous brand client, we know what customer want and we know how to make 100% quality control.

4. We can customize specification like current ,voltage ,max input voltage etc as client request ,to supply some certain function and place.

5. NO MOQ , 1 pcs sample is also OK for us.

6. Fast Delivery , Below 5000 pieces controller delivery in 2 weeks.

7. Trade assurance supplier , quality and on time shipment guaranteed.

Product Description



What's your solar charge controller looks like ?

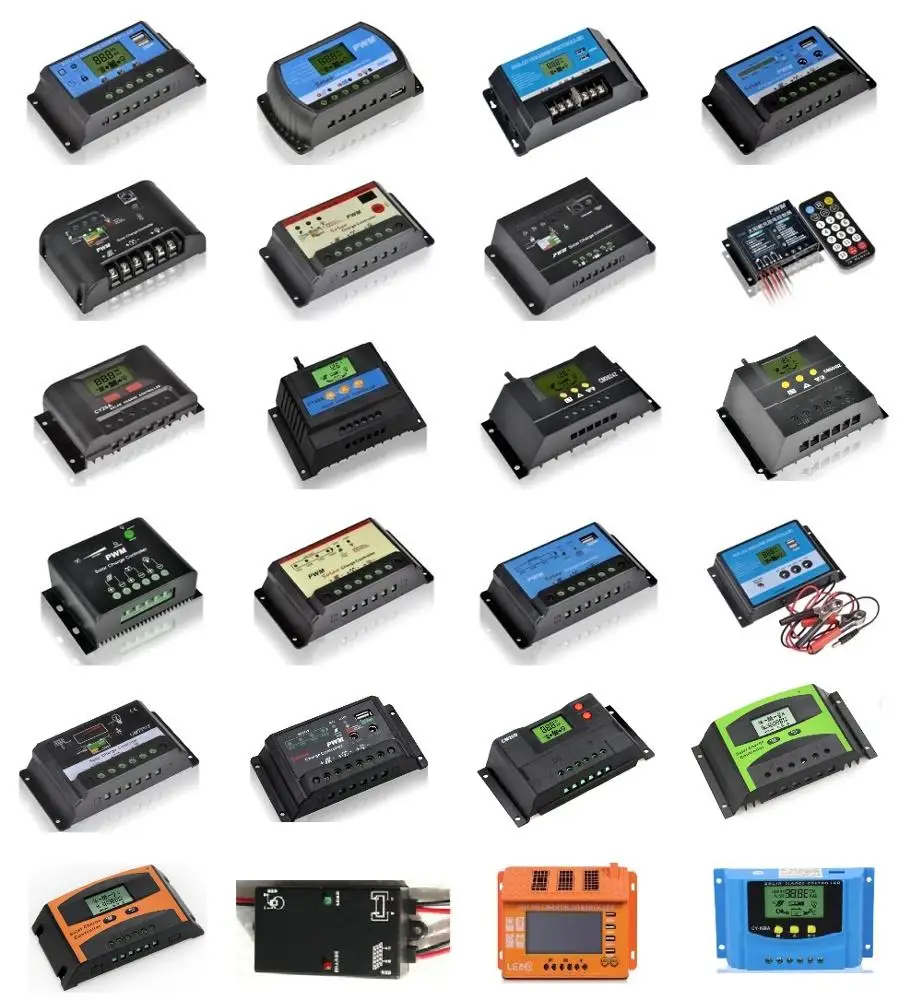

click the below picture see all kinds of power system controller/ street light controller /water proof controller



20 amp pwm solar charge controller manual



we have differfent models solar charge controller , PWM controller with LCD screen , with LED display , with USB port , from 3A to 60A , 5A 10A 20A 30A 40A are our popular hot-selling models .



for solar street light use , we have waterproof charge controller , also with remote control ,  it has time control and light control , auto delay function , you can set the working model accroding to your needs .



our pwm controller price is very competitive , and price is much different because of the different collocation between each model , so there must be one model which is suitable for your market .

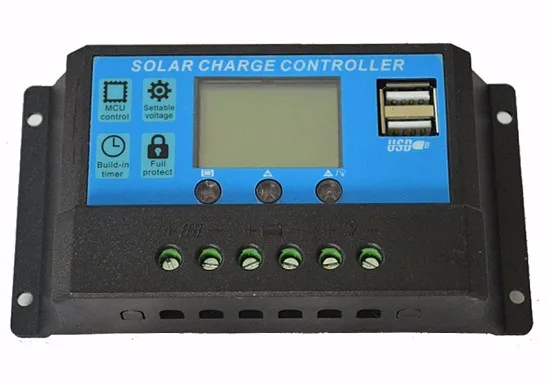

What's the controller different part function ?





20 amp pwm solar charge controller manual







specail requirement of controller is available , solar panel max input voltage can up to 55V or 100V .



we also have different solar charge controllers to charge different types batteries , such as lead-acid battery , GEL battery and Li-ion lithium battery .

Does your charge controller has auto protection function  ?



 20 amp pwm solar charge controller manual





What kind of components do you use inside the controller ?

20 amp pwm solar charge controller manual

20 amp pwm solar charge controller manual  solar controller regulator

Size and Setting :



20 amp pwm solar charge controller manual



What's the control mode  ? (Time control+Light control )

 20 amp pwm solar charge controller manual



[24H] :     load output 24hours

[1-23H] :   load on after sunset and closed after setting hours

[0H] :        Dusk to dawn





What's the controller technical specification ?


  20 amp pwm solar charge controller manual

ModelDCK1210DCK1220DCK1230DCK4820DCK4830
Battery Voltage12V /24V Auto48V
Charge Current10A20A30A20A30A
Discharge Current10A20A30A20A30A
Max Solar Input Power120/240W240/480W360/720W960W1440W
Max Solar Voltage< 50V< 80V
Float Charge13.7 / 27.4V54.8V
Load Disconnect10.7 / 21.4V42.8V
Load Reconnect12.6 / 25.2V50.4V
USB Output2 * 5V/3A
Self-Consumption< 15mA
Overload ProtectionShut down after 60s in case of 130% load;
Shut down after 5s in case of 160% load ;
Short circuit: immediate shut down
Charging ModePWM  ; Time & Lighting Control
Opertating Temperature-35°C to +60°C (full load)
Protection ClassIP20
Weight0.18kg0.18kg0.19kg0.25kg0.25kg
Dimension133*70*30 mm
Safety StandardICE62109-1



How to connect your solar charge controller ?



20 amp pwm solar charge controller manual





What certificates do you pwm solar charge controller have ?

20 amp pwm solar charge controller manual

Do you have other related solar products ?



20 amp pwm solar charge controller manual


Company Information





DOD New energy is high technology company which specialized in solar power system,wind power system and related products. We have branch in Zhejiang and Sichuan province. Main products contains solar charge controller,wind generator,solar panel,power inverter ,battery etc and most export to Europe and America. Till now we have got ISO, TUV, CE, ROHS,IEC,SGS,UL Approval.

To supply the suitable and high efficient power system is DOD New Energy ‘s Goal. We will use our supply chain, professional knowledge and experience to help our customer to save Souring time and costs.



Solar controller work shop

20 amp pwm solar charge controller manual



Our Services



1. We provide over over 20 kinds of controllers and we also have power inverter ,solar cable ,solar panel etc, customer can purchase all the equipment in our company to get more better discount.



2. We provide OEM Service

Not only printing customers logo on controller ,but also We can customize solar controller appearance by open a new case mold and also we can make change on some specification according to customer need.



3. Design Solar power system:

We have much experience on design solar power system. Customer just need to tell us what electrical appliance need to use and hours ,we can design a cost-effective system for our customers.



4. We provide lifelong technical support while customer install and use of our controllers.

FAQ



1.How to buy a sample ?

Customer need to choose the controller model ,tell us your battery voltage and Ampere you need , then we will suggest you a suitable controller.

Delivery time will be 5 days below 10 pieces sample.

Samples will delivery be International express like FedEx ,UPS,DHL . Pls let us know your shipping address to confirm the shipping costs.



2. What is the payment terms ?

For below 1000 USD, we accept Paypal ,Bank T/T .

For Above 1000 USD, We Accept Bank T/T,  Irrevocable L/C.

We welcome client to place order through Alibaba Trade Assurance . Trade Assurance can give customer 100% on-time shipment protection ,100% Product quality protection,100% Payment protection . Our Company Trade Assurance amount limit is 48000 USD. Customer can place order without worried.



3. What is controller warranty ?

All our controller are warranty 3 years . Within 3 years if found defective, we offer free new controller for replacement.
